無錫市興百利機械設備有限公司

WUXI XINGBAILI MACHINERY AND EQUIPMENT CO.,LTD.
咨詢電話:18168863192
menu

產品目錄

電氣控制系統 Intelligent electrical control system of complete equipment

電氣控制系統 Intelligent electrical control system of complete equipment

關鍵詞:

咨詢電話:

熊經理 18168863192

周經理 13665101927

產品介紹

成套設備智能電氣控制總系統 Intelligent electrical control system of complete equipment

型 號: GGD

額定工作電壓: 380V

額定工作頻率: 50HZ

額定絕緣電壓: 690V

額定防護等級: IP54

過電壓等級: III

耐壓水平: 2.5KV 50HZ 1min

溫 升: 符合IEC947-1、GB7251-2004規定

冷卻方式: 風冷

額定功率: 300kw/h

抗震等級: 7級

使用壽命: 20年

控制方式: 全自動智能化


GGD 電器控制柜,采用 PLC 編程器+10 英寸液晶屏顯示,全中文操作界面,故障自動報警會指出故障點,并且給出多個排除方案。包含電器控制總柜,配有電路保護器。有低電壓保護裝置、過載保護裝置、缺相保護裝置、電流表、電壓表和相位指示開關。

空氣開關、漏電保護器、繼電器、熱過載保護器、電流電壓表、指示燈、按鈕等電器元器件采用浙江德力西集團。

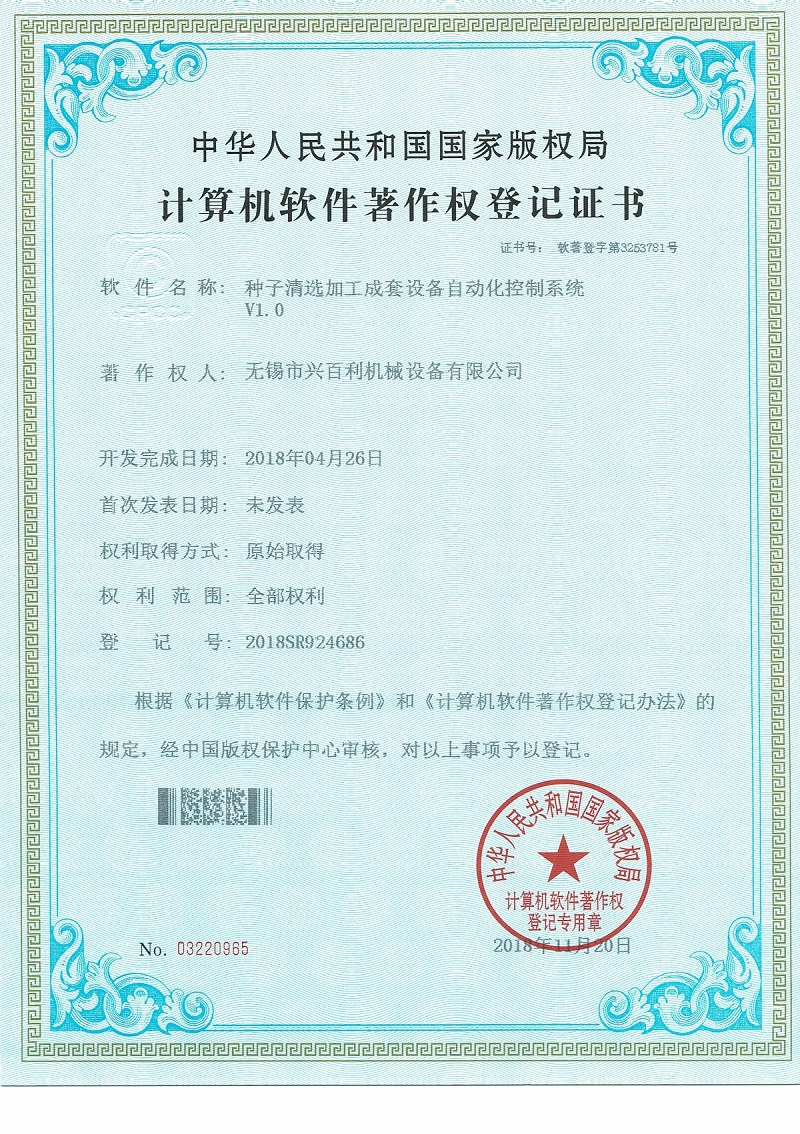

擁有1項計算機軟件著作權登記證書,證書號:軟著登字第3253781號,登記號2018SR92486

采用防鼠鐵鎧甲國標電纜線。


Model: GGD

Rated working voltage: 380V

Rated working frequency: 50Hz

Rated insulation voltage: 690V

Rated protection grade: IP54

Overvoltage level: III

Withstand voltage level: 2.5KV 50Hz 1min

Temperature rise: in accordance with iec947-1 and gb7251-2004

Cooling mode: air cooling

Rated power: 300kW / h

Seismic grade: 7

Service life: 20 years

Control mode: fully automatic and intelligent


GGD electrical control cabinet adopts PLC programmer + 10 inch LCD display, full Chinese operation interface, automatic fault alarm will point out the fault point, and provide several solutions. Including electrical control cabinet, equipped with circuit protector. There are low voltage protection device, overload protection device, phase loss protection device, ammeter, voltmeter and phase indicator switch.


Zhejiang Delixi Group is used for air switch, leakage protector, relay, thermal overload protector, ammeter, indicator light, button and other electrical components.


One computer software copyright registration certificate, Certificate No.: ruozhdz No. 3253781, Registration No. 2018sr92486


Adopt the national standard cable of rat proof iron armor.
