無錫市興百利機械設備有限公司

WUXI XINGBAILI MACHINERY AND EQUIPMENT CO.,LTD.
咨詢電話:18168863192
menu

產品目錄

1-5kg全自動包裝機 1-5kg automatic packaging machine

1-5kg全自動包裝機 1-5kg automatic packaging machine

關鍵詞:

咨詢電話:

熊經理 18168863192

周經理 13665101927

產品介紹

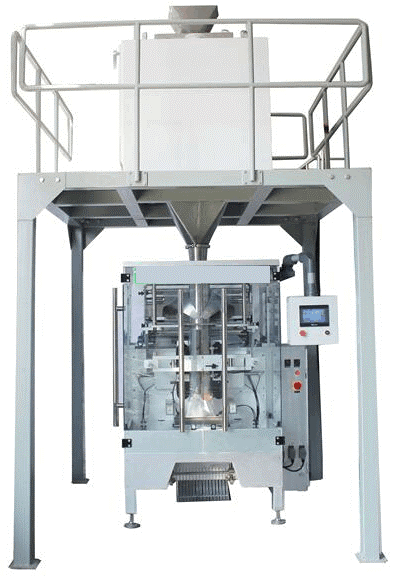

立式全自動多頭組合包裝機 Vertical automatic multi head combination packaging machine


1、該機組集計量、制袋、充填、封口、打印、沖孔、記數于一體。

2、進口PLC全電腦控制系統,多國語言觸摸屏操作系統,清楚顯示工作狀態及操作指令。

3、采用高精度伺服真空運膜系統,運膜平穩,皮帶損耗極低,配合光電自動定位跟蹤系統,定位精度高、

4、橫封封口采用伺服封合,封口控制穩定、平整、美觀、耗氣量低。

5、智能型數字式溫控系統,溫差控制穩定,配合齒形封口器,確保封口牢固。

6、含自動故障報警顯示功能,如溫度偏低、無包裝膜、無色帶、無物料、伺服故障、無色標信號、玻璃防護門未關閉等情況時,即自動報警或停機。


適用范圍:

適合要求稱重計量精度高及易碎的散狀物體的包裝,如:種子、炒貨、雜糧、膨化食品、鍋巴、果凍、糖果、開心果、蘋果片、水餃、湯圓、朱古力、寵物食品、調味品、藥材、小五金件等各類塊狀、條狀、粉狀物料的自動包裝。


稱量機構選配:

稱量部分可選配以下電子秤:二頭、四頭、六頭線性秤;十頭電子組合秤、十四頭電子組合秤。


技術參數

型號

LCS-680

包裝速度



35-45bags/min

計量范圍

0.5-5kg

稱量精度

±0.2%g

制袋尺寸

L50mm-460mm*W80mm-350mm

最大膜寬

680mm

卷材紙芯內徑

Φ75 mm

包材最大外徑

Φ400 mm

包裝膜材質

POPP/CPP,PLPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/WL/PE,NY/PE,PET/PET

圈膜厚度

0.04-0.10mm

制袋形式

立式袋、枕式袋、打孔裝置、連包裝置

耗氣量

0.4m3/min  0.6Pa

功率

5.0kW  380V  50/60HZ

外形尺寸

2500mm*2500 mm *4200 mm

設備重量

1500kg


1. The machine set includes measuring, bag making, filling, sealing, printing, punching and counting.

2. Imported PLC full computer control system, multi language touch screen operating system, clearly show the working status and operation instructions.

3. It adopts high-precision servo vacuum film transport system, which is stable in film transport and extremely low in belt loss. With the photoelectric automatic positioning and tracking system, it has high positioning accuracy

4. The horizontal sealing adopts servo sealing, and the sealing control is stable, flat, beautiful and low gas consumption.

5. Intelligent digital temperature control system, stable temperature difference control, with tooth shaped sealer, to ensure that the seal is firm.

6. Including automatic fault alarm display function, such as low temperature, no packaging film, no color band, no material, servo fault, no color code signal, glass protective door is not closed, etc., which means automatic alarm or shutdown.


Scope of application

It is suitable for the packaging of bulk objects with high weighing accuracy and fragile, such as seeds, fried goods, miscellaneous grains, expanded food, Guoba, jelly, candy, pistachio, apple slices, dumplings, Tangyuan, chocolate, pet food, condiment, medicinal materials, hardware and other kinds of block, strip and powder materials.


Selection of weighing mechanism

The weighing part can be equipped with the following electronic scales: two, four, six linear scales; ten electronic combined scales, fourteen electronic combined scales.


Technical data

Model

LCS-680

Packing   speed



35-45bags/min

Measurement   range

0.5-5kg

Quantify precision

±0.2%g

Bag   Size

L50mm-460mm*W80mm-350mm

Maximum   membrane width

680mm

Inner diameter of coil paper core

Φ75 mm

Maximum outer diameter of packing material

Φ400 mm

Packaging   film material

POPP/CPP,PLPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/WL/PE,NY/PE,PET/PET

Film   thickness

0.04-0.10mm

Sealing   method

Vertical bag, pillow bag, drilling device and continuous bag device

Gas   consumption

0.4m3/min  0.6Pa

power

5.0kW  380V  50/60HZ

Boundary   dimension

2500mm*2500 mm *4200 mm

Equipment   weight

1500kg
